kafka-manager 0.10 试玩
项目简介
kafka-manager项目提供了kafka集群的常用管理和监控功能,官方描述如下:
A tool for managing Apache Kafka.
It supports the following:
- Manage multiple clusters
- Easy inspection of cluster state (topics, consumers, offsets, brokers, replica distribution, partition distribution)
- Run preferred replica election
- Generate partition assignments with option to select brokers to use
- Run reassignment of partition (based on generated assignments)
- Create a topic with optional topic configs (0.8.1.1 has different configs than 0.8.2+)
- Delete topic (only supported on 0.8.2+ and remember set delete.topic.enable=true in broker config)
- Topic list now indicates topics marked for deletion (only supported on 0.8.2+)
- Batch generate partition assignments for multiple topics with option to select brokers to use
- Batch run reassignment of partition for multiple topics
- Add partitions to existing topic
- Update config for existing topic
- Optionally enable JMX polling for broker level and topic level metrics.
- Optionally filter out consumers that do not have ids/ owners/ & offsets/ directories in zookeeper.
Kafka-manger项目:http://www.github.com/yahoo/kafka-manager
该项目目前尚未支持kafka 0.10.x 系列版本。不过在其的PR中有关于支持0.10版本的PR:https://github.com/yahoo/kafka-manager/pull/282
本地合并步骤
git clone https://github.com/yahoo/kafka-manager.git
git fetch origin pull/282/head:0.10.0
git checkout 0.10.0
代码编译
cd kafka-manager
./sbt clean dist
如果是全新的编译环境,编译时间会非常久(主要原因是要初始化sbt编译系统的各种,比如下载ivy2依赖的jar包等)
编译完成后在目录 target/universal目录下会出现zip文件即为编译打包成功的部署包。
部署
解压到服务器某目录,只需要配置conf/application.conf文件内容即可:
kafka-manager.zkhosts=”172.19.11.197:2181”
以上ZK地址根据实际情况修改成合适的地址。
启动
bin目录启动,./kafka-manger
kafka-manger特性研究
功能模块 | 功能点 | 是否具备 | 备注 | |
---|---|---|---|---|
集群管理 | 添加集群 | √ | ||
修改集群 | √ | |||
启/禁用集群 | √ | |||
删除集群 | √ | |||
集群列表 | √ | |||
Broker管理 | Broker列表 | √ | 指标 | |
Broker详情 | √ | 消息总量/Topic列表 | ||
Topic管理 | Topic创建 | √ | ||
Topic列表 | √ | 指标 | ||
Topic详情 | √ | |||
Topic删除 | √ | |||
分区调整 | √ | |||
分区信息 | √ | |||
订阅管理 | Consumer列表 | √ | 需要JMX开启支持 | |
Consumer详情 | √ | |||
权限管理 | 登录 | √ | 提供basic auth,后台可配置用户名、密码登录 |
Broker 指标
- Message in /sec
- Bytes in /sec
- Bytes out /sec
- Bytes rejected /sec
- Failed fetch request /sec
Failed produce request /sec
需要Broker开启JMX
Topic 指标
- Replication (副本数)
- Number of Partitions (分区数)
- Sum of partition offsets (offset大小,需要开启JMX支持)
- Total number of Brokers (Broker总数)
- Number of Brokers for Topic (Topic所占Broker数)
- Preferred Replicas % ()
- Brokers Skewed % (Broker 均衡率)
- Brokers Spread % (Broker 扩散率)
Under-replicated % (处于同步状态的比率)
需要JMX开启支持
风险项 0.10版支持 master上尚未合并0.10版本的PR,需要自己合并测试后可用

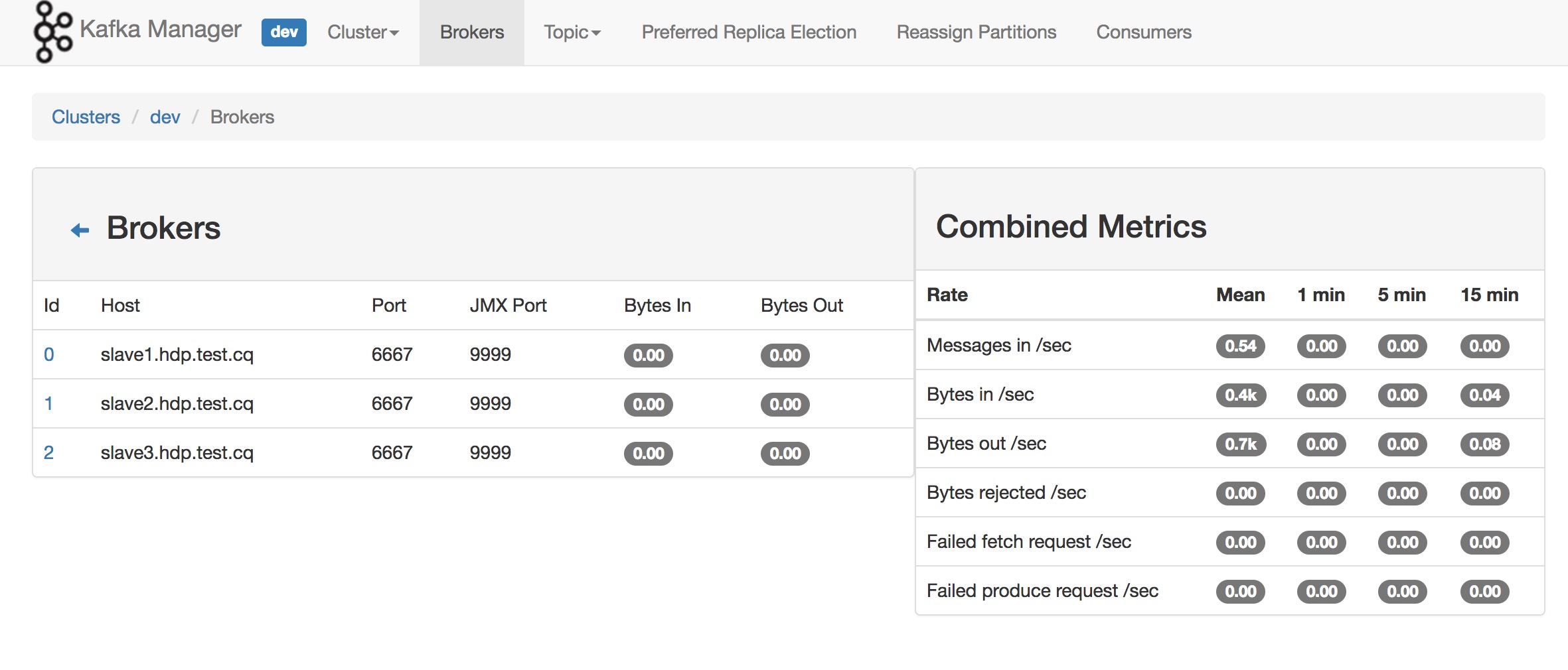

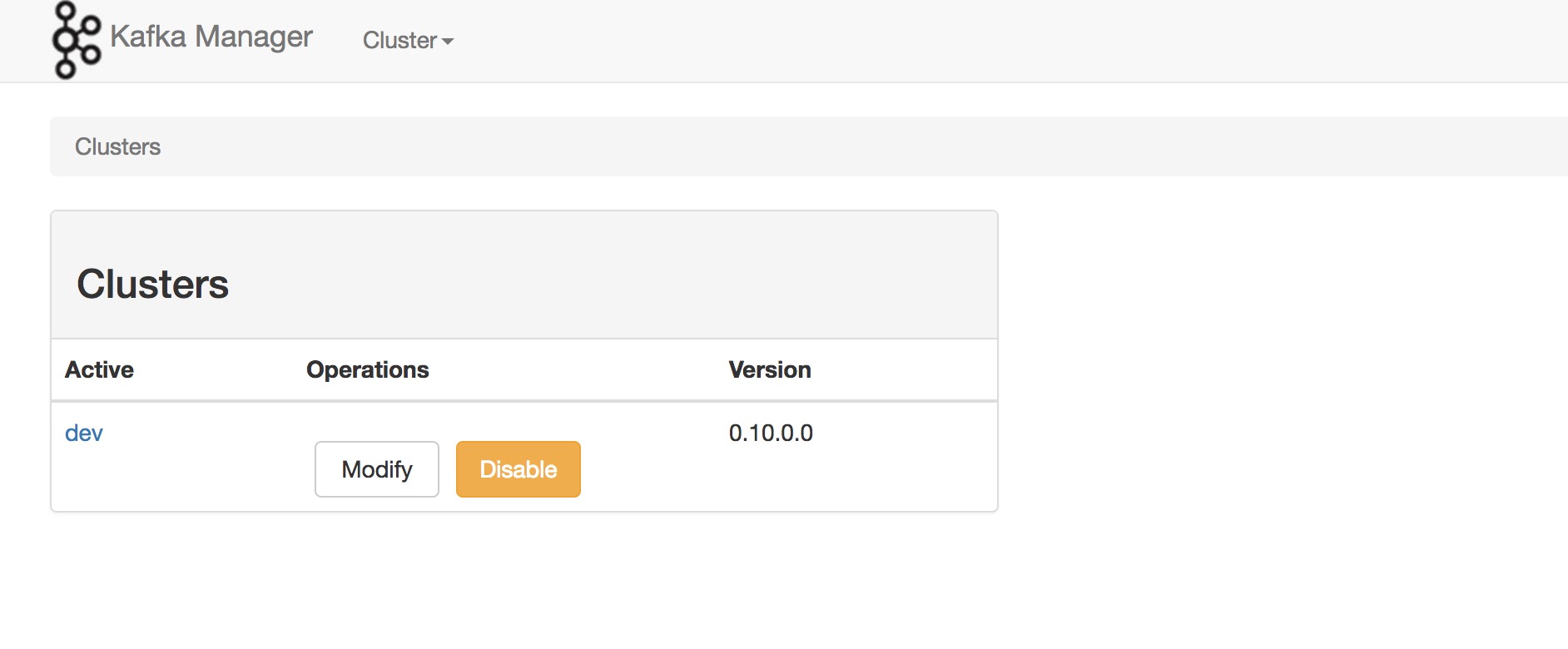

附一些界面截图:
